HDT18 18,000 lb Two-Post Truck Lift
Compare specifications and request a written quote for your shop.
Free freight to the nearest terminal. Installation quoted separately.
Special order only · Request a quote

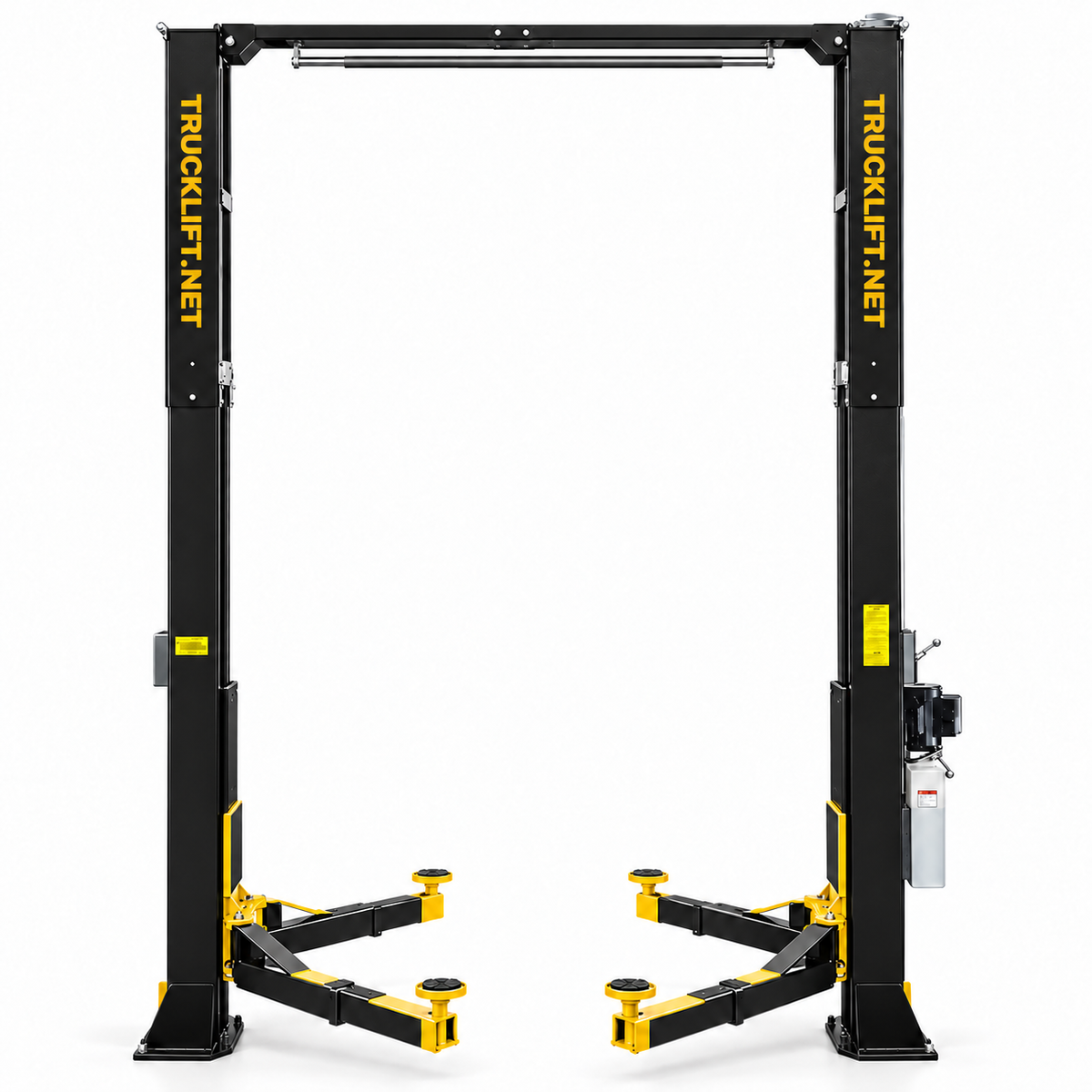

The TRUCKLIFT HDT18 is a 18,000 lb two-post truck lift for professional vehicle service bays. A clear-floor two-post lift for truck, van and commercial service bays, with adjustable installation height and frame-contact lifting arms.
Frame-contact arms provide access beneath the vehicle. Check approved lifting points, load distribution, arm reach and overhead clearance for each vehicle before selecting a two-post lift.
Features
- Clear-floor layout with overhead shut-off

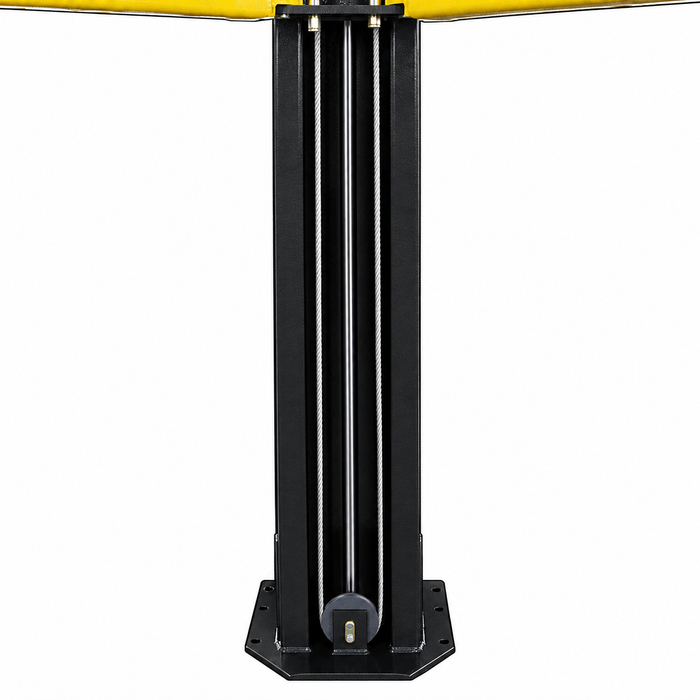

- Dual direct-drive hydraulic cylinders
- Three installation heights: 174, 186 or 198 inches

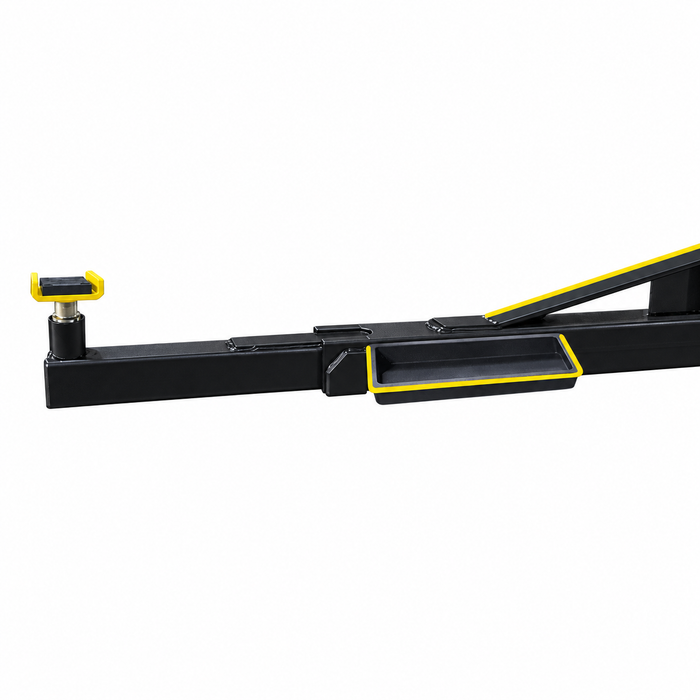

- Four two-stage arms

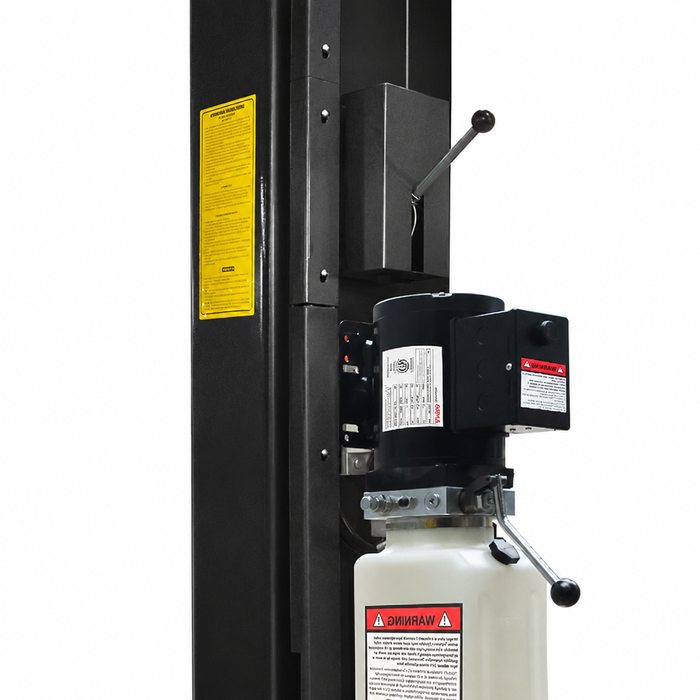

- Single-point manual lock release

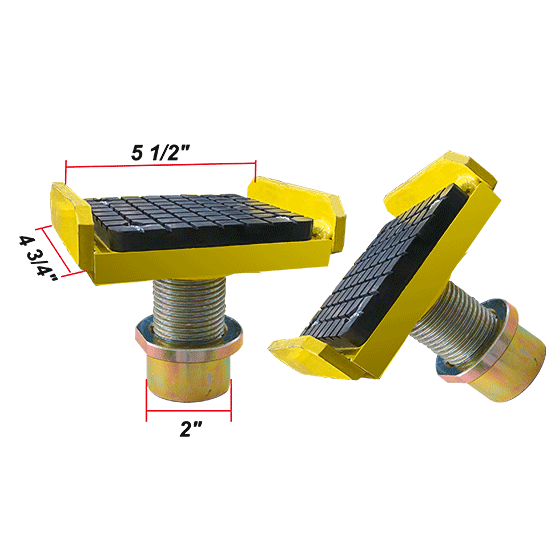

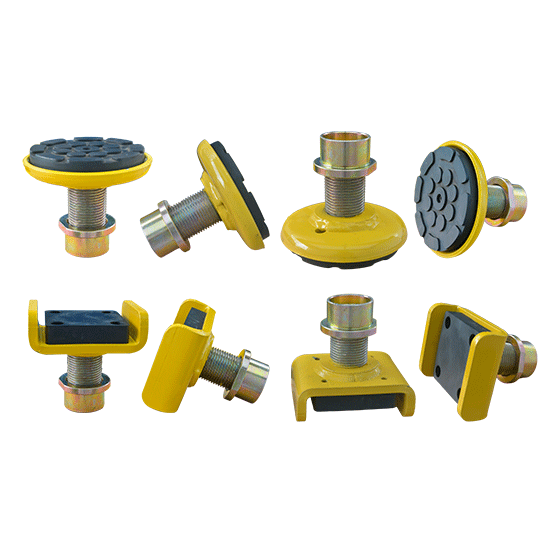

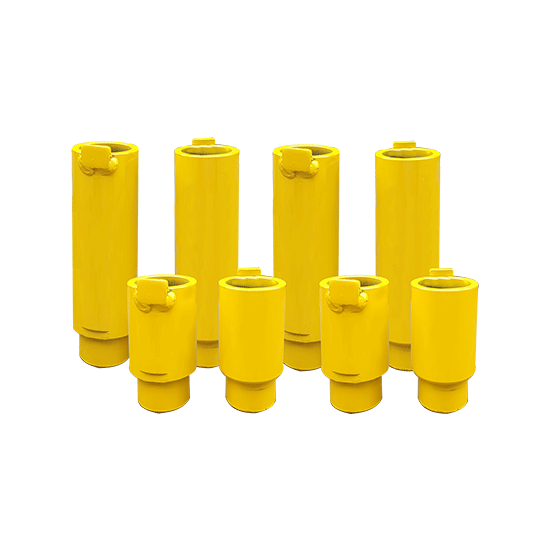

- Single-screw rubber pads, saddle adapters and 3-/6-inch extensions
- Extended carriages for added stability
Dimensions and specifications
| Item code / SKU | HDT18 |
|---|---|
| Rated capacity | 18,000 lb |
| Lifting Time | 84s |
| Max. Lifting height: (w/o extension adapter) | 74 7/8"~76 1/4" |
| Max. Lifting height: (w/ extension adapter) | 83 7/8"~ 85 1/4" |
| Max. lock height: (w/o extension adapter) | 72 7/8"~ 74 1/4" |
| Max. lock height: (w/ extension adapter) | 81 7/8"~ 83 1/4" |
| Overall Height: (low setting) | 174" |
| Overall Height: (medium setting) | 186" |
| Overall Height: (high setting) | 198" |
| Overall Width | 151 15/16" |
| Drive-Thru Clearance | 110 7/16" |
| Width Between Columns | 123 1/2" |
| Minimum Pad Height | 6 7/8" |
| Gross Weight | 2,906 Ibs |

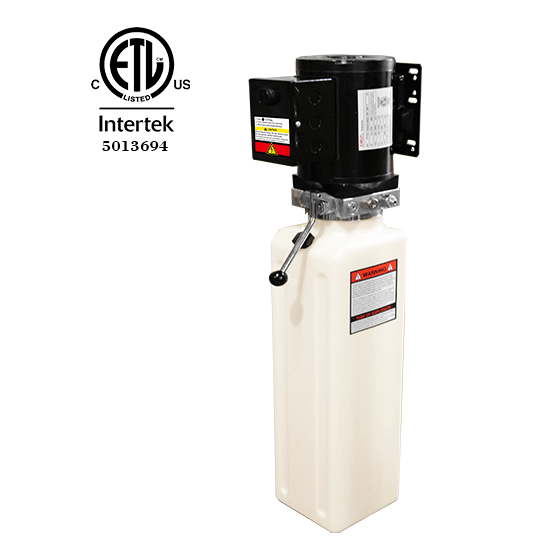

| Motor | 2.0HP |
Special-order quote and delivery
All lifts are special order. Request written confirmation of equipment, accessories, current lead time and order terms. Free freight is provided to the nearest freight terminal. Direct delivery and installation are quoted separately.
Plan your installation
Have a qualified installer confirm concrete, anchors, ceiling height, electrical supply and any compressed-air requirements against the exact model manual. Capacity alone does not establish vehicle compatibility.
Delivery and installation · Installation policy · Financing inquiries

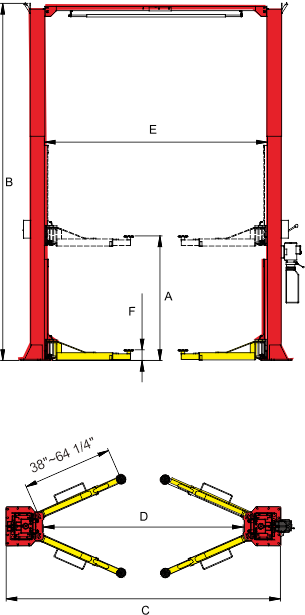

Drawing measurement key — HDT18
| Drawing reference | Measurement | HDT18 |
|---|---|---|
| A | Max. Lifting height: (w/o extension adapter) | 74 7/8"~76 1/4" |
| B | Overall Height: (low setting) | 174" / |
| C | Overall Width | 151 15/16" |
| D | Drive-Thru Clearance | 110 7/16" |
| E | Width Between Columns | 123 1/2" |
| F | Minimum Pad Height | 6 7/8" |
Use the model-specific installation manual to confirm site requirements and clearances before installation.
Equipment details & options
Optional accessories are included only when listed in your written quote. Select a photo to enlarge it.
