HDA14E 14,000 lb Extended Four-Post Alignment Lift
Compare specifications and request a written quote for your shop.
Free freight to the nearest terminal. Installation quoted separately.
Special order only · Request a quote

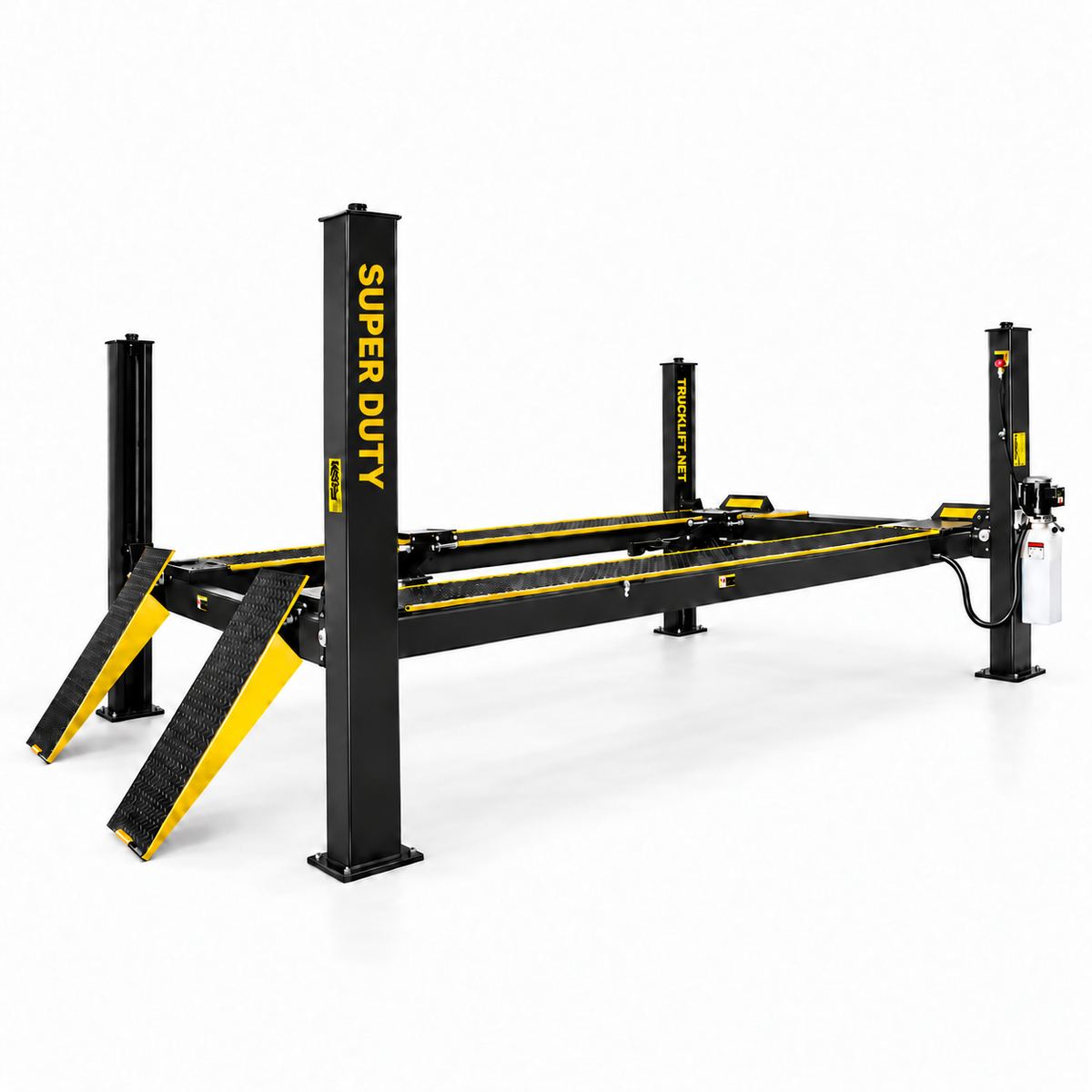

The TRUCKLIFT HDA14E is a 14,000 lb extended four-post alignment lift for professional vehicle service bays. Drive-on alignment lift with slip plates and turnplate pockets for a commercial service bay.
Drive-on runways support alignment service with slip plates and turnplate pockets. Confirm the wheelbase range and the turnplates or rolling jacks included in your written equipment quote.
This extended configuration provides additional runway length. Compare the exact overall length and crossbeam dimensions with the standard-length model before planning your bay.
Features

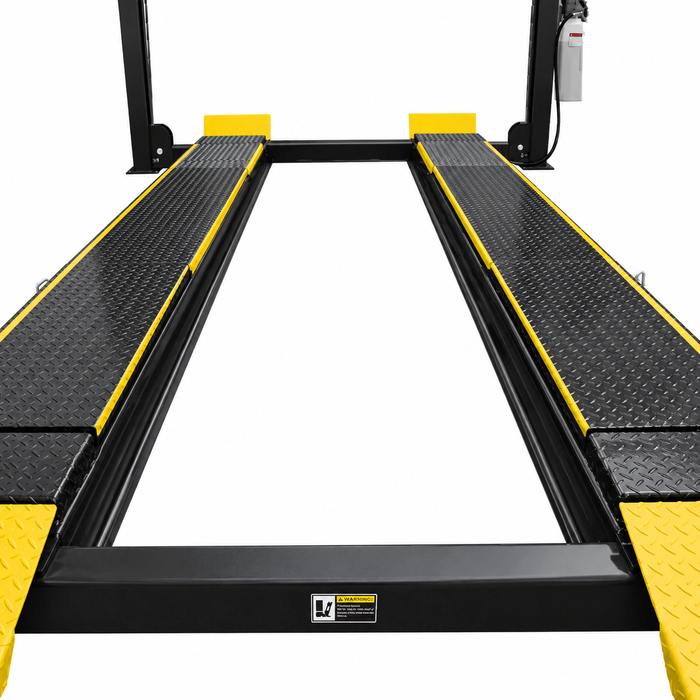

- Diamond-plate drive-on platforms
- Mechanical locks with pneumatic release
- Primary safety locks and cable-slack protection
- Cable-driven hydraulic lifting system
- ETL-certified power unit
- Integrated slip plates and adjustable turnplate pockets
- Extended length for longer vehicles
Dimensions and specifications
| Item code / SKU | HDA14E |
|---|---|
| Rated capacity | 14,000 lb |
| Lifting Time | 81s |
| Overall Length (Inc Ramps) | 286" |
| Runway Length | 229" |
| Overall Width | 130 7/8" |
| Width Between Columns | 116" |
| Max. Lifting Height | 77 9/16" |
| Max. Lock Height | 74 7/16" |
| Overall Height | 86 3/16" |
| Minimum Height | 9 13/16" |
| Max. Underneath Height | 68 7/8" |
| Max. Underneath Lock Height | 65 3/4" |
| Drive-Thru Clearance | 102 1/16" |
| Width Between Runways | 46" |
| Outside Edge of Runways | 86" |
| Min. Four Wheel Align | 92 5/8" |
| Max. Four Wheel Align | 177 3/16" |
| Max. Two Wheel Align | 207 1/16" |
| Gross Weight | 3,752 lbs |
| Motor | 2.0HP |
Special-order quote and delivery
All lifts are special order. Request written confirmation of equipment, accessories, current lead time and order terms. Free freight is provided to the nearest freight terminal. Direct delivery and installation are quoted separately.
Plan your installation
Have a qualified installer confirm concrete, anchors, ceiling height, electrical supply and any compressed-air requirements against the exact model manual. Capacity alone does not establish vehicle compatibility.
Delivery and installation · Installation policy · Financing inquiries
Drawing measurement key — HDA14E
| Drawing reference | Measurement | HDA14E |
|---|---|---|
| A | Overall Length (Inc Ramps) | 286" |
| B | Runway Length | 229" |
| C | Overall Width | 130 7/8" |
| D | Width Between Columns | 116" |
| E | Max. Lifting Height | 77 9/16" |
| F | Overall Height | 86 3/16" |
| G | Minimum Height | 9 13/16" |
| H | Max. Underneath Height | 68 7/8" |
| I | Drive-Thru Clearance | 102 1/16" |
| J | Width Between Runways | 46" |
| K | Outside Edge of Runways | 86" |
| L | Min. Four Wheel Align | 92 5/8" |
| M | Max. Four Wheel Align | 177 3/16" |
| N | Max. Two Wheel Align | 207 1/16" |
Use the model-specific installation manual to confirm site requirements and clearances before installation.
Equipment details & options
Optional accessories are included only when listed in your written quote. Select a photo to enlarge it.
