HD40 40,000 lb Four-Post Truck Lift
Compare specifications and request a written quote for your shop.
Free freight to the nearest terminal. Installation quoted separately.
Special order only · Request a quote

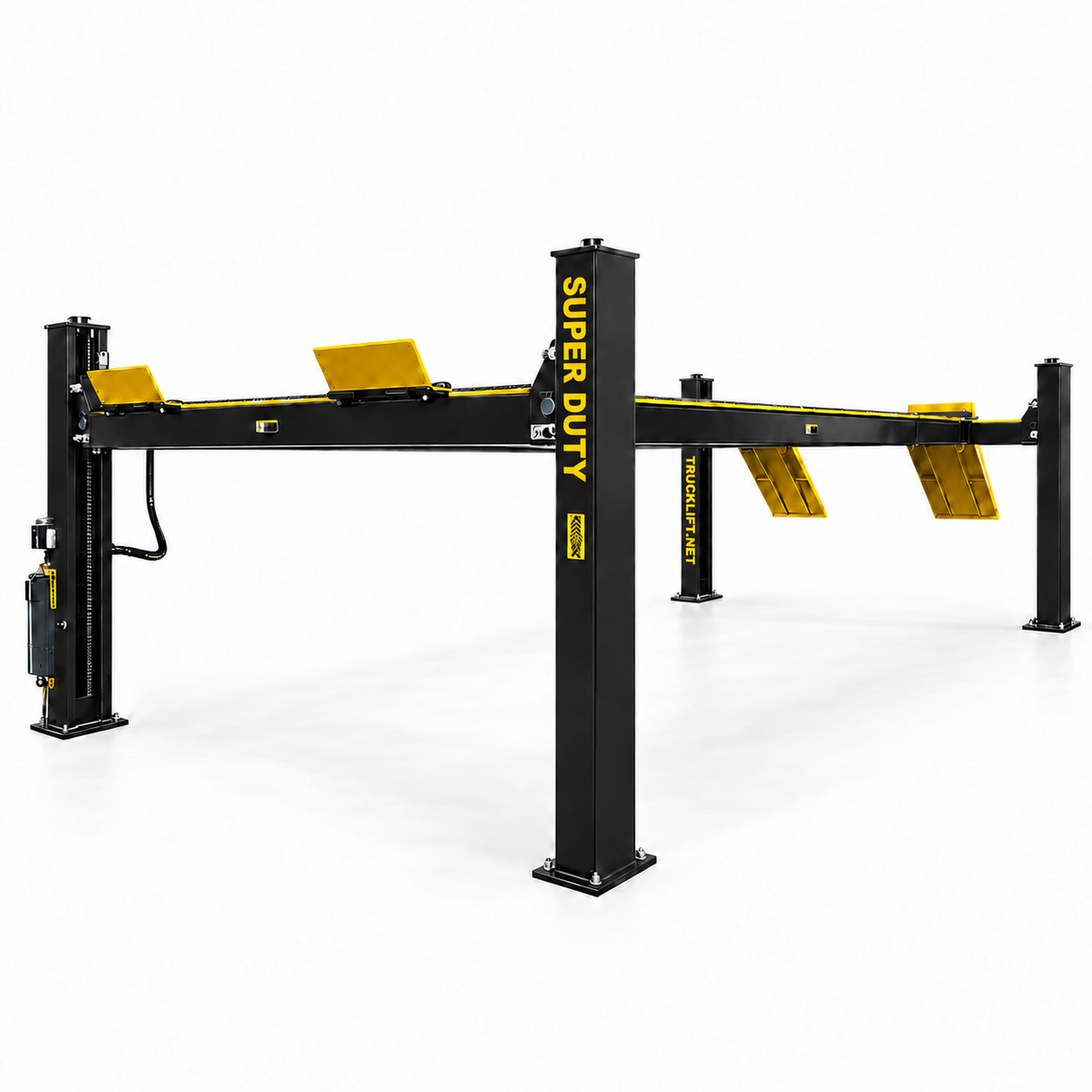

The TRUCKLIFT HD40 is a 40,000 lb four-post truck lift for professional vehicle service bays. Drive-on four-post lift for truck and commercial vehicle maintenance.
Drive-on runways suit general vehicle service. Check wheelbase, tire track, approach clearance and load distribution against the lift manual for the vehicles your shop services.
Features

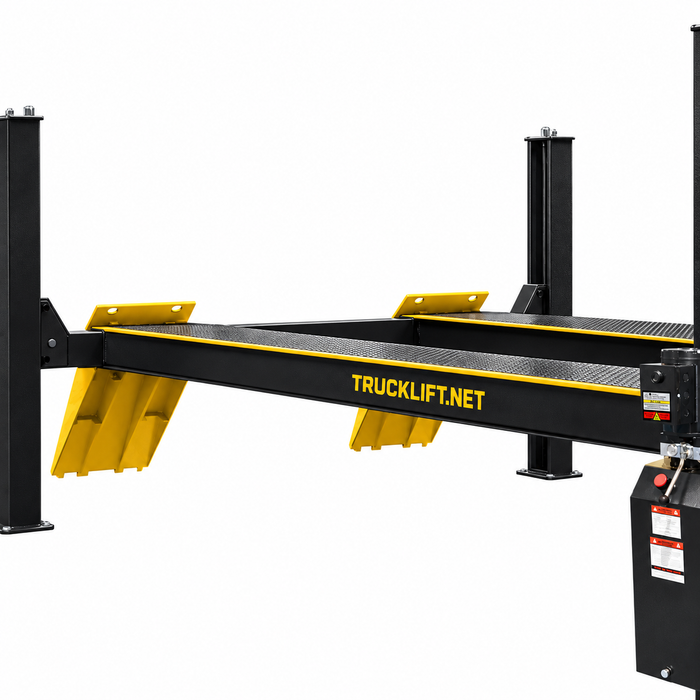

- Diamond-plate drive-on platforms

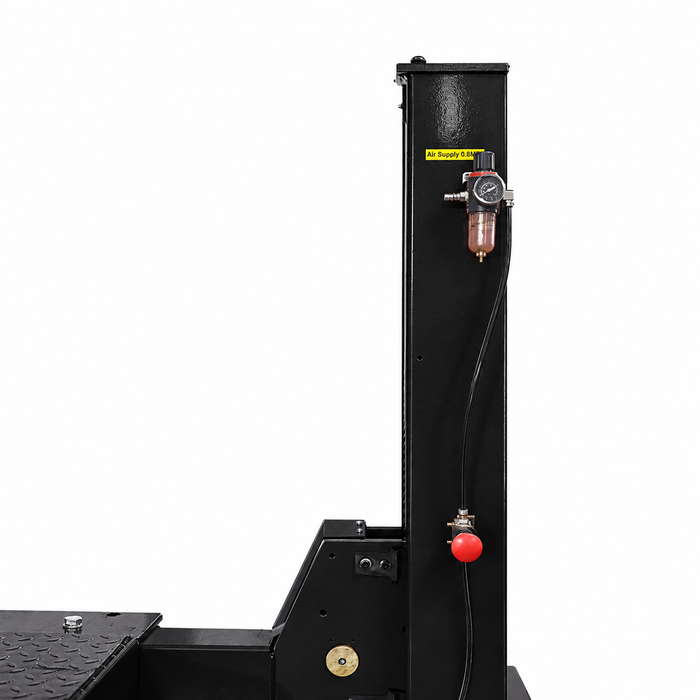

- Mechanical locks with pneumatic release

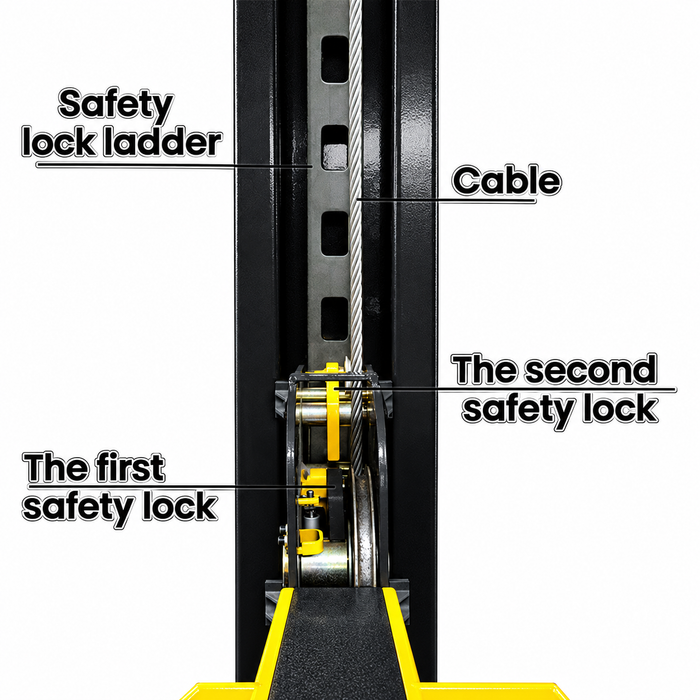

- Primary safety locks and cable-slack protection

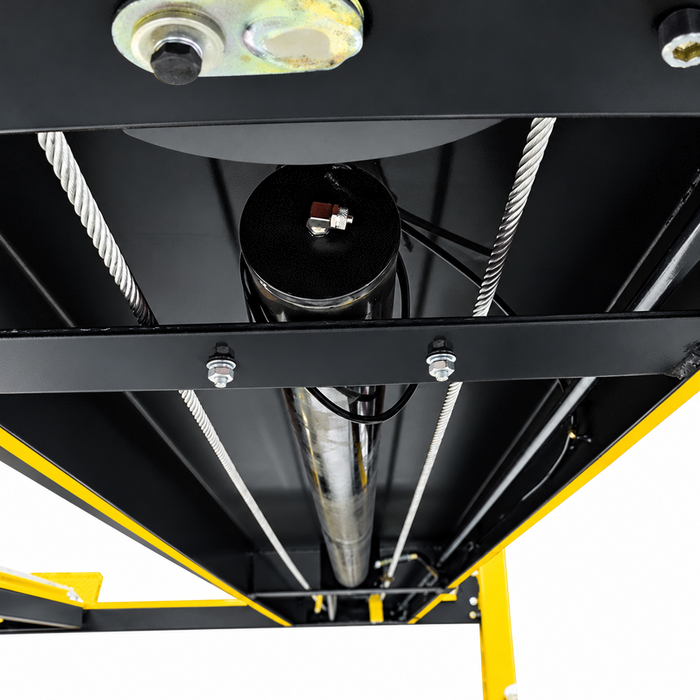

- Cable-driven hydraulic lifting system

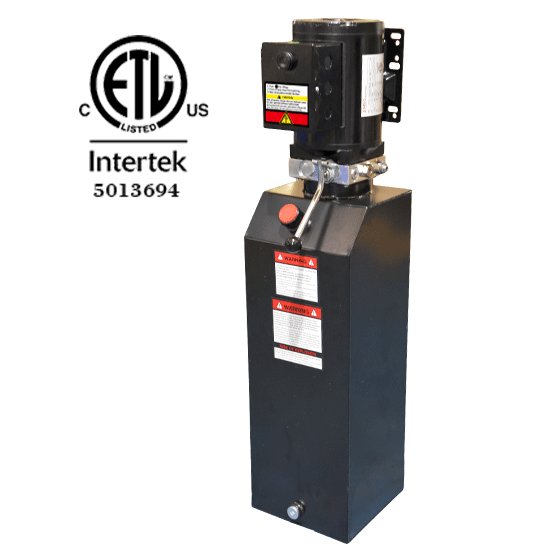

- ETL-certified power unit
- Two runway-width settings
Dimensions and specifications
| Item code / SKU | HD40 |
|---|---|
| Rated capacity | 40,000 lb |
| Lifting Time | 183s |
| Overall Length (Inc Ramps) | 366 1/8" |
| Outside Edge of Crossbeams | 307 1/16" |
| Overall Width | 151 1/2" |
| Width Between Columns | 133 15/16" |
| Max. Lifting Height | 75 3/8" |
| Max. Lock Height | 72 3/16" |
| Overall Height | 92" |
| Minimum Height | 10 3/8" |
| Max. Underneath Height | 66 5/16" |
| Max. Underneath Lock Height | 63 3/16" |
| Drive-Thru Clearance | 119 13/16" |
| Width Between Runways | 46" / 54 1/16“ |
| Outside Edge of Runways | 101 7/8" / 110” |
| Gross Weight | 8,503bs |
| Motor | 2.0HP |
Special-order quote and delivery
All lifts are special order. Request written confirmation of equipment, accessories, current lead time and order terms. Free freight is provided to the nearest freight terminal. Direct delivery and installation are quoted separately.
Plan your installation
Have a qualified installer confirm concrete, anchors, ceiling height, electrical supply and any compressed-air requirements against the exact model manual. Capacity alone does not establish vehicle compatibility.
Delivery and installation · Installation policy · Financing inquiries

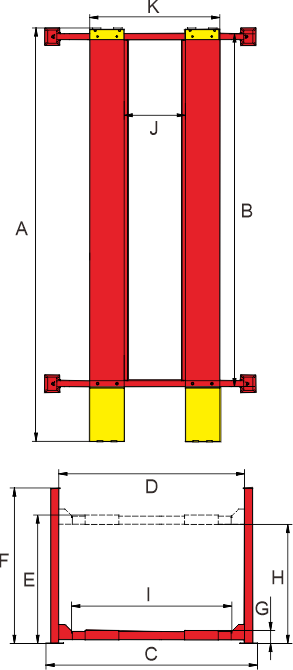

Drawing measurement key — HD40
| Drawing reference | Measurement | HD40 |
|---|---|---|
| A | Overall Length (Inc Ramps) | 366 1/8" |
| B | Outside Edge of Crossbeams | 307 1/16" |
| C | Overall Width | 151 1/2" |
| D | Width Between Columns | 133 15/16" |
| E | Max. Lifting Height | 75 3/8" |
| F | Overall Height | 92" |
| G | Minimum Height | 10 3/8" |
| H | Max. Underneath Height | 66 5/16" |
| I | Drive-Thru Clearance | 119 13/16" |
| J | Width Between Runways | 46" / 54 1/16“ |
| K | Outside Edge of Runways | 101 7/8" / 110” |
Use the model-specific installation manual to confirm site requirements and clearances before installation.
Equipment details & options

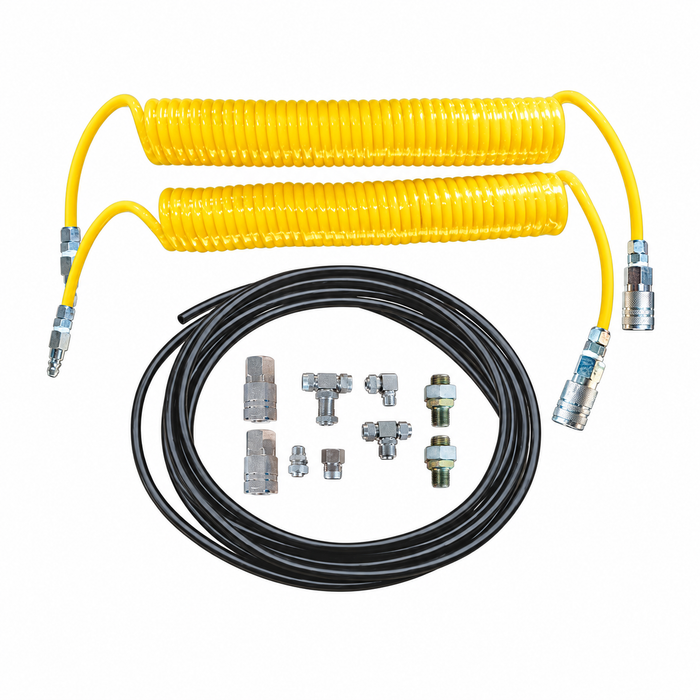

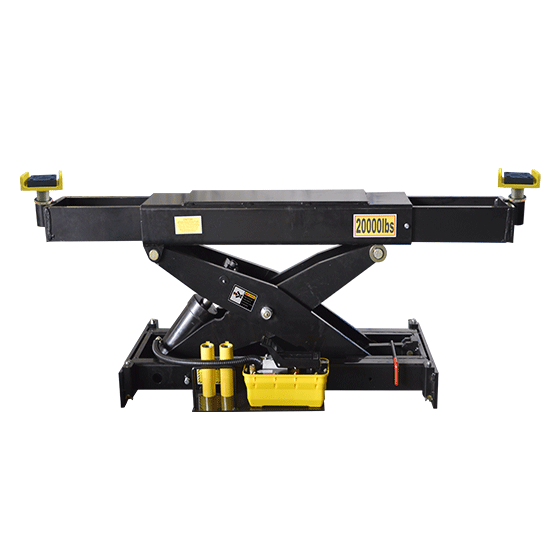

Optional accessories are included only when listed in your written quote. Select a photo to enlarge it.
