HD30E 30,000 lb Extended Four-Post Truck Lift
Compare specifications and request a written quote for your shop.
Free freight to the nearest terminal. Installation quoted separately.
Special order only · Request a quote

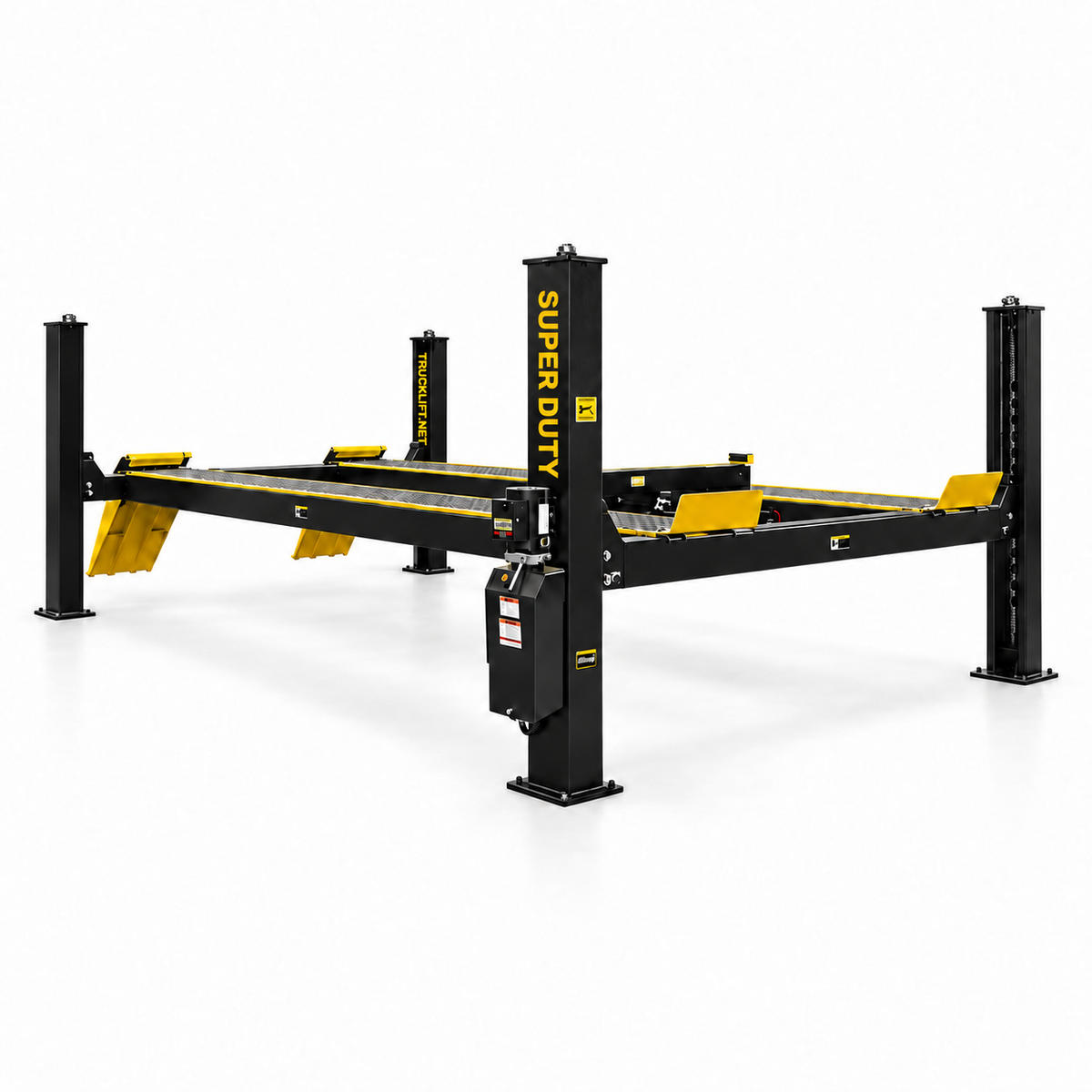

The TRUCKLIFT HD30E is a 30,000 lb extended four-post truck lift for professional vehicle service bays. Extended drive-on four-post lift for longer commercial vehicles and truck service applications.
Drive-on runways suit general vehicle service. Check wheelbase, tire track, approach clearance and load distribution against the lift manual for the vehicles your shop services.
This extended configuration provides additional runway length. Compare the exact overall length and crossbeam dimensions with the standard-length model before planning your bay.
Features
- Diamond-plate drive-on platforms
- Mechanical locks with pneumatic release
- Primary safety locks and cable-slack protection
- Cable-driven hydraulic lifting system
- ETL-certified power unit
- Two runway-width settings
- Extended length for longer vehicles
Dimensions and specifications
| Item code / SKU | HD30E |
|---|---|
| Rated capacity | 30,000 lb |
| Lifting Time | 133s |
| Overall Length (Inc Ramps) | 366 1/8" |
| Outside Edge of Crossbeams | 307 1/16" |
| Overall Width | 147 9/16" |
| Width Between Columns | 130" |
| Max. Lifting Height | 75 3/16" |
| Max. Lock Height | 72 1/16" |
| Overall Height | 92" |
| Minimum Height | 10 1/4" |
| Max. Underneath Height | 66 5/16" |
| Max. Underneath Lock Height | 63 3/16" |
| Drive-Thru Clearance | 115 15/16" |
| Width Between Runways | 46" / 54 1/16“ |
| Outside Edge of Runways | 94" / 102 1/8” |
| Gross Weight | 6,860 lbs |
| Motor | 2.0HP |
Special-order quote and delivery
All lifts are special order. Request written confirmation of equipment, accessories, current lead time and order terms. Free freight is provided to the nearest freight terminal. Direct delivery and installation are quoted separately.
Plan your installation
Have a qualified installer confirm concrete, anchors, ceiling height, electrical supply and any compressed-air requirements against the exact model manual. Capacity alone does not establish vehicle compatibility.
Delivery and installation · Installation policy · Financing inquiries
Drawing measurement key — HD30E
| Drawing reference | Measurement | HD30E |
|---|---|---|
| A | Overall Length (Inc Ramps) | 366 1/8" |
| B | Outside Edge of Crossbeams | 307 1/16" |
| C | Overall Width | 147 9/16" |
| D | Width Between Columns | 130" |
| E | Max. Lifting Height | 75 3/16" |
| F | Overall Height | 92" |
| G | Minimum Height | 10 1/4" |
| H | Max. Underneath Height | 66 5/16" |
| I | Drive-Thru Clearance | 115 15/16" |
| J | Width Between Runways | 46" / 54 1/16“ |
| K | Outside Edge of Runways | 94" / 102 1/8” |
Use the model-specific installation manual to confirm site requirements and clearances before installation.
Equipment details & options
Optional accessories are included only when listed in your written quote. Select a photo to enlarge it.
